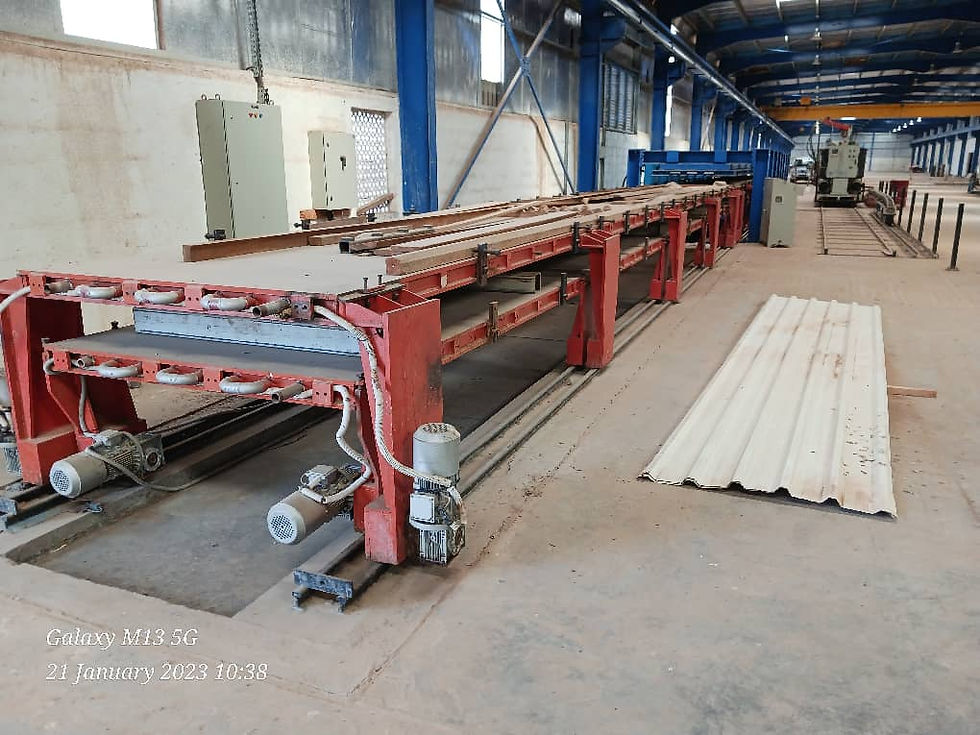

IMT2620 - Roll Forming Line Machine

IMT2620 - Roll Forming Line Machine

  • Technical Specification - Double Layer

    1. Double Layer Roll Forming Machine
    Roll Forming Machine RF- YX30-200-1000 / YX45-250-1000
    Rolling Speed 10 - 14 m/min (Cutiing time is not include)
    Steel Sheet Thickness 0.3 - 0.8 mm
    The Feeding Size 1220
    The out Panel Size 1220
    Control System PLC (Panasonic)
    Un Coiler 5 ton Hydraulic un-coiler
    Roller Stations 18 Stations
    Roller Material 45# Forge steel, coated with chrome
    Shaft Material and DIA ¢75 mm, Material is 45# forge steel
    Maim Motor Power 7.5 kw
    Hydraulic Station Power 3 kw
    Hydraulic Pressure 12 Mpa
    Material of Cutting Cr12Mov quenching 58-62 degC
    Material of the Stations Memorial archway
    Tolerance 3m ± 1.5 mm
    Power Supplier 380 V, 50 Hz, 3 Phase
    Way of Drive 1.2 inch single chain
    Color of the Machine Blue & Yellow
    Size of the Machine 15500 mm x 1700 x 1500 mm
  • Technical Specification - C/Z Purlin

    2. C/Z Purlin Roll Forming Machine Photo (Update soon)
    The Specification of the Rollong Production 80 - 300 x L
    The Speed of the roll-in 5-10m/min
    The Power of the principal electric motor 15 Kw
    Hydrodynamic Station cut 11 Kw
    The Size of the Shape Equipment 12.3 x 1.8 x 1.4
    The Gross Weight of the Equipment 12 ton
  • Technical Specification - U Purlin Roll Forming

    3. U Purlin Roll Forming Machine Photo (Update Soon)
    Roll Forming Machine RF-C
    Rolling Speed 10 - 14 m/min (Cutiing time is not include)
    Steel Sheet Thickness 0.3 - 0.8 mm
    The Feeding Size 580 mm
    Control System PLC (Panasonic)
    Un Coiler 5 ton Manual
    Roller Stations 16 Stations
    Roller Material 45# Forge steel, coated with chrome
    Shaft Material and DIA ¢70 mm, Material is 45# forge steel
    Maim Motor Power 7.5 Kw
    Hydraulic Station Power 3 Kw
    Hydraulic Pressure 12 Mpa
    Material of Cutting Cr12Mov quenching 58-62 degC
    Material of the Stations Memorial archway
    Tolerance 3m ± 1.5 mm
    Power Supplier 380 V, 50 Hz, 3 Phase
    Way of Drive 1.2 inch single chain
  • Technical Specification -  Decking Sheet

    4. Decking Sheet Roll Forming Machine
    Rolling Forming Machine DF 65-305-920
    Rolling Speed 10 - 14 m/min (Cutiing time is not include)
    Steel Sheet Thickness 0.8 - 1.2 mm
    Control System PLC (Panasonic)
    Un Coiler 5 ton Manual
    Roller Stations 28 Stations
    Roller Material 45# Forge steel, coated with chrome
    Shaft Material and DIA ¢80 mm, Material is 45# forge steel
    Maim Motor Power 15 kw
    Hydraulic Station Power 4 kw
    Hydraulic Pressure 15 Mpa
    Material of Cutting Cr12Mov quenching 58-62 degC
    Material of the Stations Memorial archway
    Tolerance 3m ± 1.5 mm
    Power Supplier 380 V, 50 Hz, 3 Phase
    Way of Drive 1.2 inch single chain
    Color of the Machine Blue & Yellow
    Size of the Machine 15500 x 1700 x 1500 mm
  • Technical Specification - Slitting and Electric

    5. Slitting Machine and Electric Shearing Machine
    UnCoiler
    Max. Load Bearing 5 ton
    Max. Sheet Width 1250 mm
    Inner Diameter of Coiled Material 470 - 570 mm
    Motor Power 7.5 Kw
    The Type of Speed Reducer ZQA350-31.5-III
    Min. Coil Speed 28m/min
    System Pressure for Reference 16 Mpa

    Load Car
    Max. Load Bearing 5 ton
    Max. Sheet Width 1250 mm
    Max. Elevating Heiht 230 mm
    Step of Two-Single-Acting Cylinde 350 mm
    First Diameter of Plunger is ∅ 125, step 175, 16 Mpa, Thrust force 196KN
    Second Diameter of Plunger is ∅ 100, step 175, 16 Mpa Thrust force 125KN
  • Technical Specification - Curving Machinery

    6. Curving Machinery for YX45-250-1000

      Items Specifications
    Material of Coil

    Material Thickness

    Material Width

    0.3 - 0.8 mm

    1220 mm

    Forming System

    Roller Stations Roller

    Material Shaft Material and DIA

    Maim Motor Power

    5 pcs

    45# forge steel, coated

    ¢68mm, material is 45# forge steel

    Packing Information

    Size of the machine

    1200 x 800 x 1650 mm



  • Technical Specification - Hydraulic Curving

    7. Hydraulic Curving Machine Photo (Update Soon)
    Material 0.3 - 0.8 mm
    Material Width 5 Pcs
    Roller Stations 1220 mm
    Roller Material 45# Forge steel, coated with chrome
    Shaft Material ¢ 68 mm, Material is 45# forge steel
    Maim Motor Power 2.2 kw
    Main Motor Power (Hydraulic System) 5.5 kw
    Control PLC Control
  • Technical Specification - 4M Bending

    8. 4M Bending Machine

    The Thickness of Steel Press 0.5 - 1.5 mm
    Length 4500 mm
    Width 400 mm
    Height 2500 mm
  • Technical Specification - 2+2 Pu Press Mold

    9. 2+2 Pu Press Mold SPDPU-11M Photo (Update Soon)
    Size of Flat PU Sandwich Panel 11m x 1.25m x (30mm - 200mm)
    Size of Moulding Machine 11.5 x 2 x 2 m
    Power 20Kw
    Capacity 2 - 6 Pieces/h
    Workers for Moulding Machine 4 - 6 Persons
GET A QUOTE

** Technical specifications are given to the best of our knowledge. However, we do exclude any liability on specifications and condition. Prospective buyers are invited to check all vital details upon an inspection.
